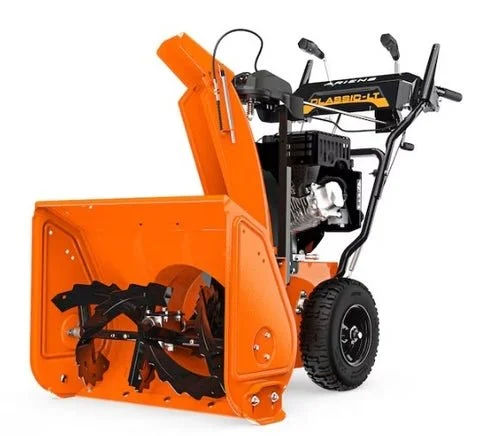

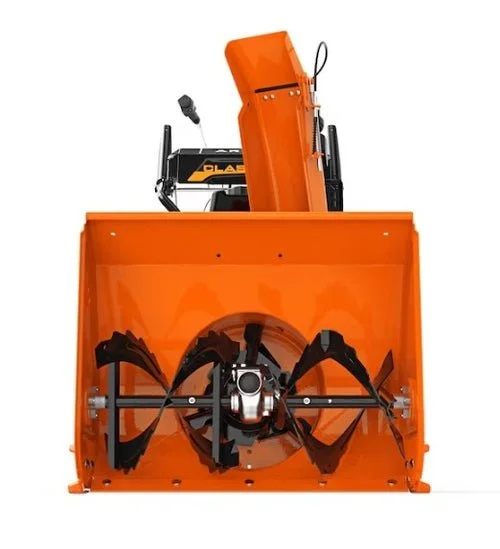

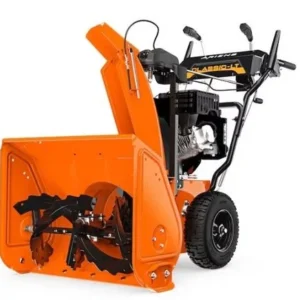

Ariens Classic 920033 24″ Two-Stage Electric Start Snow Blower
| TITLE | CLASSIC 24 | ||
|---|---|---|---|
| MODEL NUMBER | 920033 | ||
| POWER TRAIN | |||
| ENGINE | Ariens 179cc AX® | ||
| STARTING SYSTEM | 120v / Electric | ||
| STEERING | Pin-Lock | ||
| DRIVE TYPE | Disc-O-matic | ||
| SPEEDS | 6 Forward/2 Reverse | ||
| TIRE SIZE | 13 In / 33cm | ||
| TIRE TYPE | Polar Trac | ||
| CLEARING SPECS | |||
| CLEARING WIDTH (IN/CM) | 24 In / 60.9cm | ||
| HOUSING HEIGHT | 20 In / 50.7cm | ||
| THROWING DISTANCE | 3 ft – 40 ft | ||
| CHUTE ROTATION | 2.5x Quick Turn | ||
| CHUTE TURNING RADIUS | 205 | ||
| DEFLECTOR CONTROL | In-Dash Lever | ||
| STAGE TYPE | Two Stage | ||
| AUGER DIAMETER | 11 In / 27.9cm | ||
| AUGER TYPE | Steel Serrated | ||
| IMPELLER PROFILE | Steel 3 Blade | ||
| IMPELLER DIAMETER | 12 In / 30.4cm | ||
| SKID SHOES | Steel Reversible | ||
| SCRAPER BAR | Steel Adjustable | ||
| GEAR CASE | Aluminum | ||
| DIMENSIONS | |||
| LENGTH | 54.4 In / 138.1cm | ||
| WIDTH | 26.4 In / 67cm | ||
| HEIGHT | 42.9 In / 108.9cm | ||
| WEIGHT (ASSEMBLED) | 173.3 lb / 78.6 kg | ||
| WARRANTIES | |||
| PRODUCT WARRANTY | 3 years residential use. 90 days commercial use | ||
| GEAR CASE WARRANTY | 3 Year Consumer, 90 Day Commercial | ||
| ACCESSORIES | |||
| FEATURES AT A GLANCE | Remote Deflector Control: Standard Drift Cutters: Optional One Hand Interlock: Standard | ||
