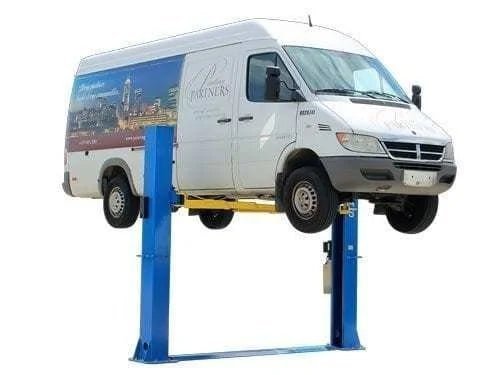

The Atlas BP10000X commercial grade 2 post baseplate lift is built for those customers who want to lift heavy vehicles in a low ceiling garage. The Atlas BP10000X incorporates the popular single point lock release columns have a middle welded support gusset that adds extra strength to the oversized columns.
If you need to lift a one ton dually or a Smart Car and only have an 11 foot ceiling, this is the lift for your shop.
Features & Benefits
- 10,000 lb. Capacity
- Commercial Grade
- Baseplate, Open-Top Style Lift
- Overall Height: 111 7/8″ (9′ 3 7/8″)
- Single-Point Lock Release Allows Both Columns To Be Disengaged Simultaneously
- Super-Symmetric Arms
- Dual Hydraulic Chain-Drive Cylinders Made to ANSI Standard
- Welded Support Gussets Increase Column Strength.
- Automatic Arm Restraints
- Powder Coat Finish
- Free 12 Piece Truck Adapter Set
- 5 yr Structural – 2 yr Hydraulic Warranty
Atlas ATTD-BP10000X Specifications
| Capacity | 10,000 lb. |
| Overall Height | 111 7/8″ (9′ 3 7/8″) |
| Overall Floor Width | 139 1/8″ (11′ 7 1/8″) |
| Outside Column to Outside Column | 134 1/2″ (11′ 2 1/2″) |
| Maximum Lift Height (Without Adapters) | 77 3/8″ |
| Maximum Lift Height (With Adapters) | 86 3/8″ |
| Minimum Arm Height | 4″ |
| Inside Column | 112 1/4″ (9′ 4 1/4″) |
| Drive Thru | 101 1/4″ (8′ 5 1/4″) |
| Column Size | 9 1/2″ x 11″ |
| Column Thickness of Steel | 6mm |
| Base Of Lift | 17 1/2″ x 21 1/2″ |
| Motor/Electrical Requirement | 220 volt single (1) phase. A 30 amp breaker is recommended |
| Oil Requirement | 3-5 Gallons AW32/AW46(NOT INCLUDED) |
| Adapter Heights | 4 Each 2″, 3″, 6″ |
| Arm Hole/Adapter Peg Size | 1.5″ |
