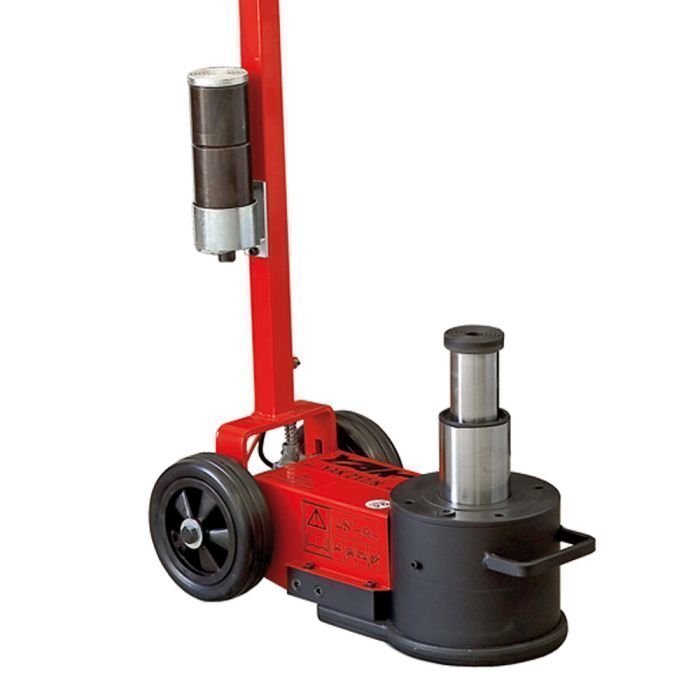

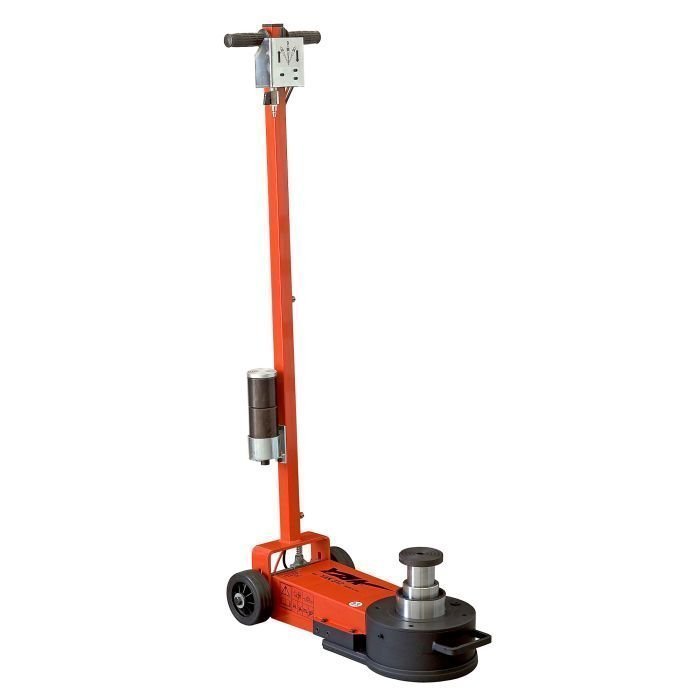

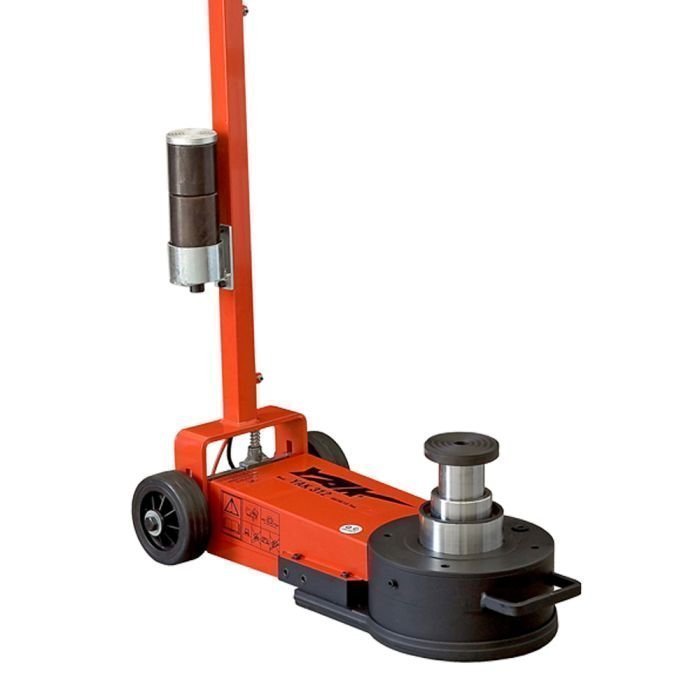

The ESCO Yak 17-33-66 Ton Air Hydraulic Jack is a 3-stage jack designed specifically for lifting buses and all vehicles with low-profile axles and access points. Designed to be portable and easy to use, with storage for the extensions on the handle, this jack is incredibly portable. Jack comes with three extensions (0.5″, 4.75″, 2.75″). Jack lifting capacity to handle up to 66 Tons. With a minimum height of 4.75″ and a maximum height of 10.06″ (without extensions), this jack is perfect for any service bay or truck.
Features
- Air Hydraulic Jack For Heavy Vehicles, Practical And Effective
- 3-Stage Jack: 66-Ton (1) 33-Ton (2) 17-Ton (3)

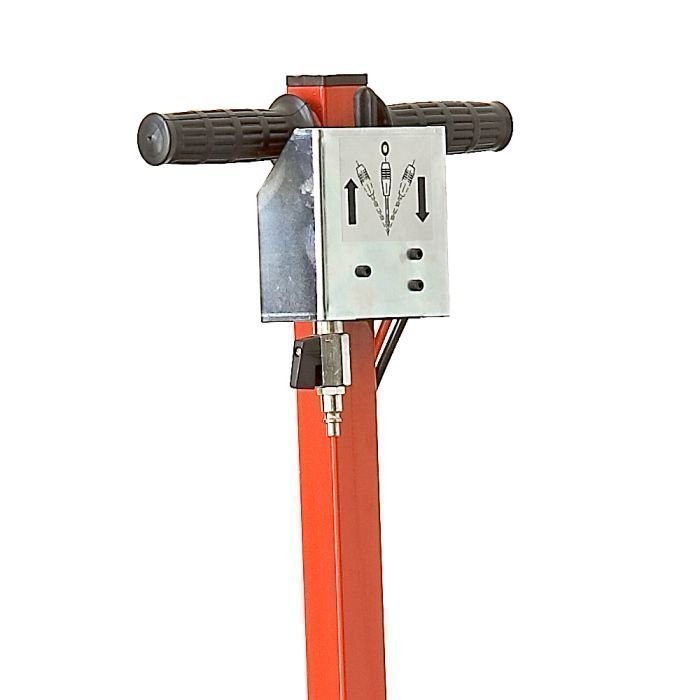

- Easy To Use Up/Down Function Operation
- Adjust Handle Position With Simple Motion
- Includes (3) Extensions For Variable Height With Storage On Handle
- The Pistons Move Back Automatically
- Two Descent Valves Guarantee Perfect Holding In All Situations And Controlled Speed Under Load

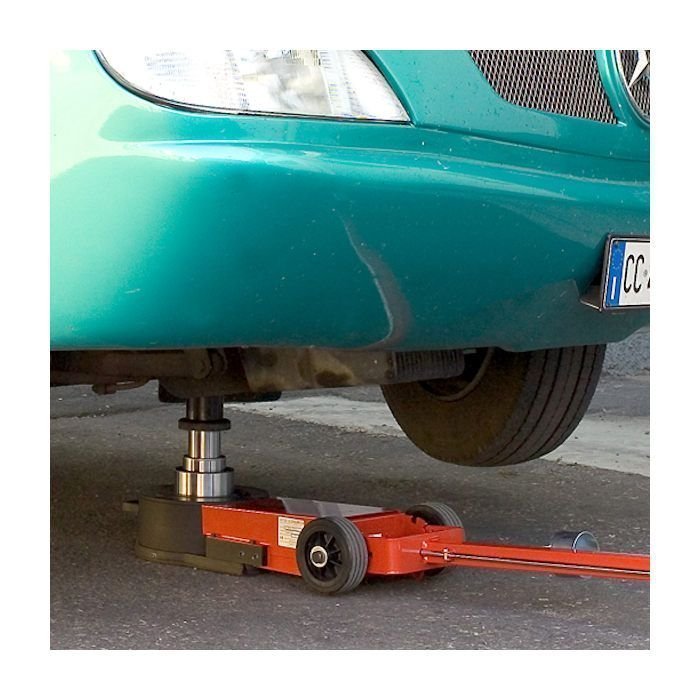

- Specifically Designed For Lifting Buses And All Vehicles With Low Profile Axles
- Ideal For Workshops, Mobile Workshops, Tire Repairers And Bodywork Shops
- 3-Year Extended Warranty
Specifications
- Style: YAK 312
- Overall Length: 26″
- Lifting Capacity: 66/33/17 Ton
- Stroke: 5″ (135 mm)
- Air Pressure: 116-145 PSI
- Min. Height: 5.31″ (135mm)
- Max. Height: 10.05″ (255mm)
- Handle Length: 51.77″ (1314mm)
- Extensions Included: 0.5″ – 4.75″ – 2.75″ (12mm – 120mm – 70mm)
- Weight: 110 lbs. (50 kg)
- Warranty: (3) Year Limited*
