Schumacher Electric Corporation has been leading change and driving performance to exceed its customers’ expectations. Engineered patent-pending technologies and award-winning marketing makes Schumacher the brand of choice. Schumacher’s legacy is its commitment to quality and exceptional customer service. Schumacher brings experience, innovation and excellence to the next generation of battery maintenance… the #1 name in battery chargers around the world.
Features and Specs
Features:
- Charges standard, AGM and Gel and deep-cycle batteries
- 300A (6V)/330A (12V)/250A (24V) Engine Start – powerful enough for SUVs, trucks and large engines
- 3080A Boost mode – quickly brings deeply discharged battery back to life
- 70A Flash Reprogram mode
- Memory Saver mode – for saving vehicle settings while changing the battery
- Microprocessor-controlled – automatically adjusts amperage rate, to charge and maintain
- Multi-stage charging – for added precision, safety and battery life
- Float mode monitoring – maintains optimum battery charge
- Reverse hook-up protection
- Digital display, LED indicators and push-button controls
- Start/Stop interface
- Extra-long output cables – 17 ft. total reach
- Retractable handle
- Safe for outdoor use
- Schu Eco Energy – meets the highest industry standards
- DOE compliant

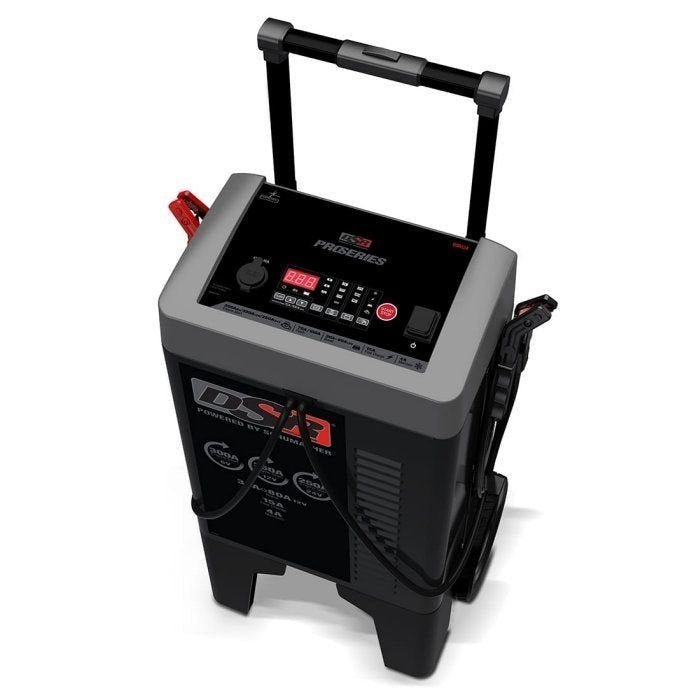

- Contents: (1) DSR124 battery charger (1) Memory saver cable (4) Cable clamp cleats (4) Screws (1) Manual
Specifications:
- Battery Type: Standard, AGM, Gel, Deep-Cycle
- Input Voltage: 120V AC
- Input Current: 14.6A cont., 66.5A int.
- Output Voltage: 6/12/24V
- Output Current: 6V: 4/15A cont, 80/300A int; 12V: 4/15A cont, 80/330A int; 24V: 30A cont, 250A int
- Dimensions: 16.25 × 20.5 × 33.63 in
- Weight: 70 lb
- Safety Certifications: UL ULC
Warranty: 2 Years
