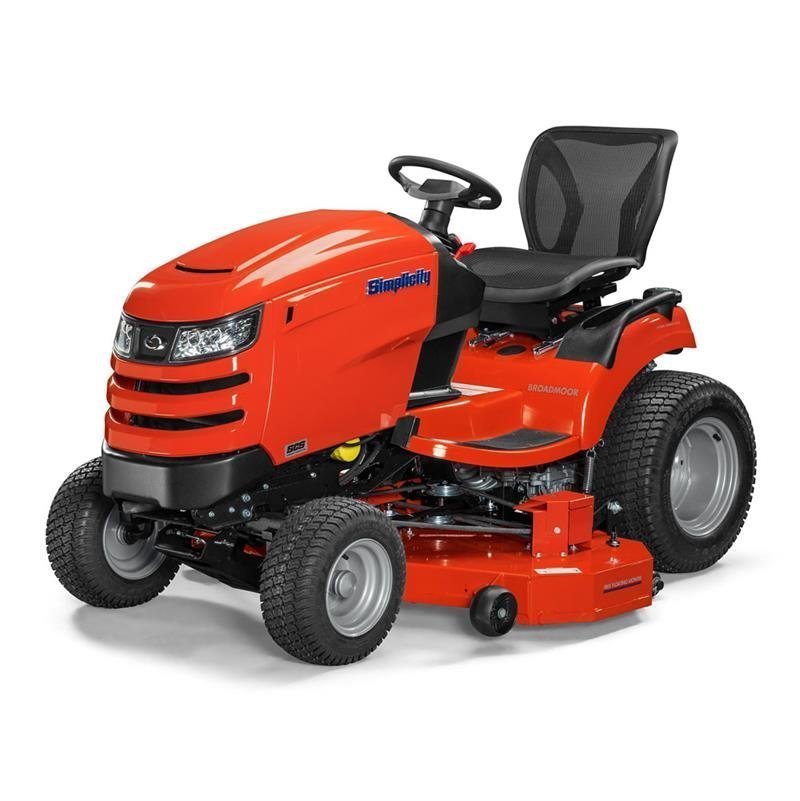

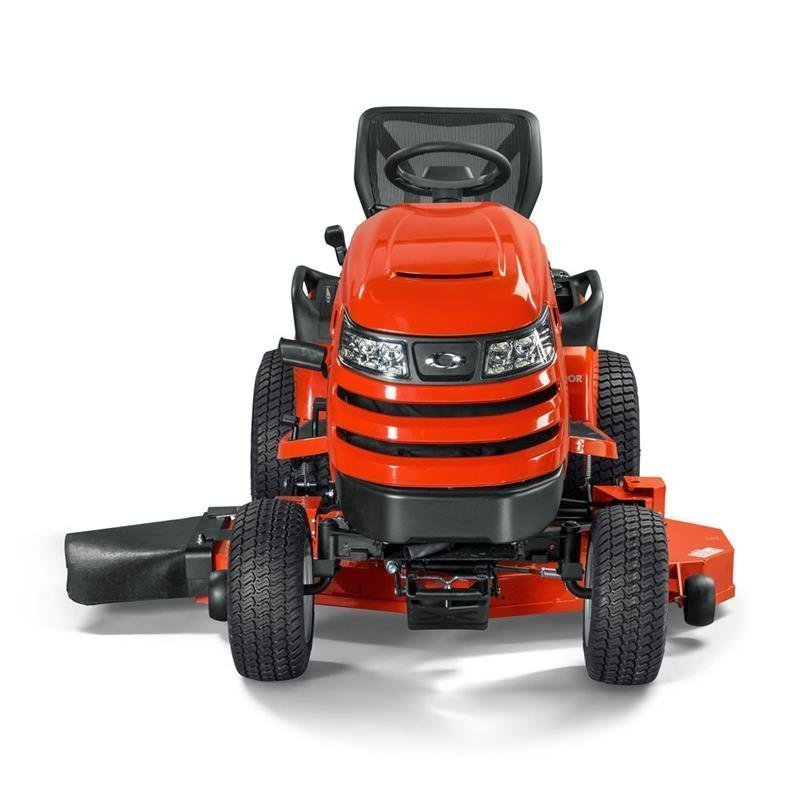

BROADMOOR™ LAWN TRACTOR
Bring Comfort and Performance to Your Lawn
Can a lawn tractor be both high-performing and comfortable? The Simplicity Broadmoor™ answers this question with a definite “YES”! With the unique Free Floating™ Mower Deck, rear suspension and breathable ergonomic mesh tractor seat, mowing the lawn will never feel like yard work.
Model Number
2691674
Marketing Model
25/52″ SCS
Start Type
Electric, Push Button

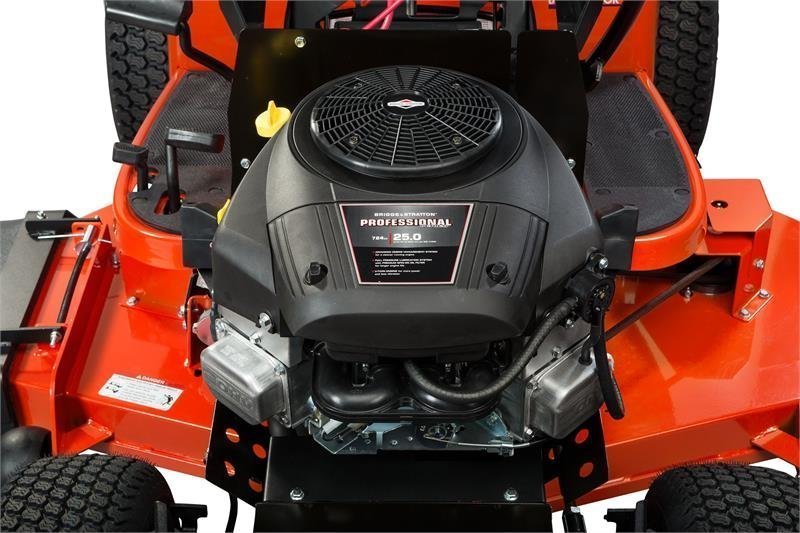

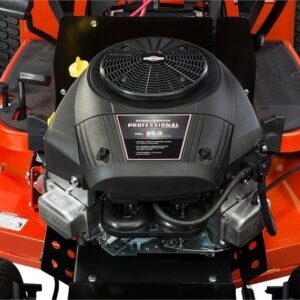

Power Rating *
25
Cylinders
2
Engine Displacement (cc)
724
Choke/Throttle
Ready Start®, Single-Lever
Fuel Tank Capacity (gal)
3.6
Battery (cca)
230
Transmission Type
Tuff Torq® K62
Transmission Differential
Hydrostatic
Ground Speed-Fwd (mph)
0-6.7
Ground Speed-Rev (mph)
0-4.0
Automatic Controlled Traction™
Standard
4-Wheel Drive
N/A
Brake
Disc
Frame Steel
10-Gauge
Front Axle
Cast-Iron
Front Tires (in)
16 x 6.5 – 8 /Turf
Rear Tires (in)
23 x 10.5 – 12 /Turf
Attachment Lift
Integrated Hydraulic Dash Lever
Seat
High-Back Mesh
Suspension
SCS, Rear
Mower Deck Type
Fabricated Free Floating™
Cutting Width (in)
52
Number of Blades
3
Height-of-Cut (in)
1.25 – 4.5
Height-of-Cut Positions
Infinite/Electric
Blade Engagement
Electric PTO Switch
Rear Rollers
Standard, Full-Width Striping
Mower Deck Removal
Integrated Hydraulic Dash Lever
Spindle
Commercial Aluminum w/ Zerk Fittings
Mower Steel Gauge
10-Gauge
Washout Port
Standard
Cruise Control
Standard
Steering
Power Steering
Headlights
Standard, LED
Hour Meter
Standard
Fuel Level Indicator
Digital, Dash
12 Volt DC Outlet
Yes
Hand Grips
Standard
Deluxe Instrumental Panel
N/A
Cup Holder
Standard
Turning Radius (in)
18
Assembled Length (in)
76
Assembled Width (in)
63
Assembled Height (in)
48
Consumer Warranty (Product) **
3-Years
Commercial Warranty (Product) **
90-Days
Fabricated Mower Deck Warranty **
Lifetime
